Outdoor NightGuide

No Light. Full Color Night
Customizable Risk Recognition
Timely Analysis & Instant Feedback
99% Recognition Accuracy

No Needed for Lighting

AI Customizable

99% AI Recogization Accuracy

Instant Data Analysis and Feedback

Product Description

Technical Parameters

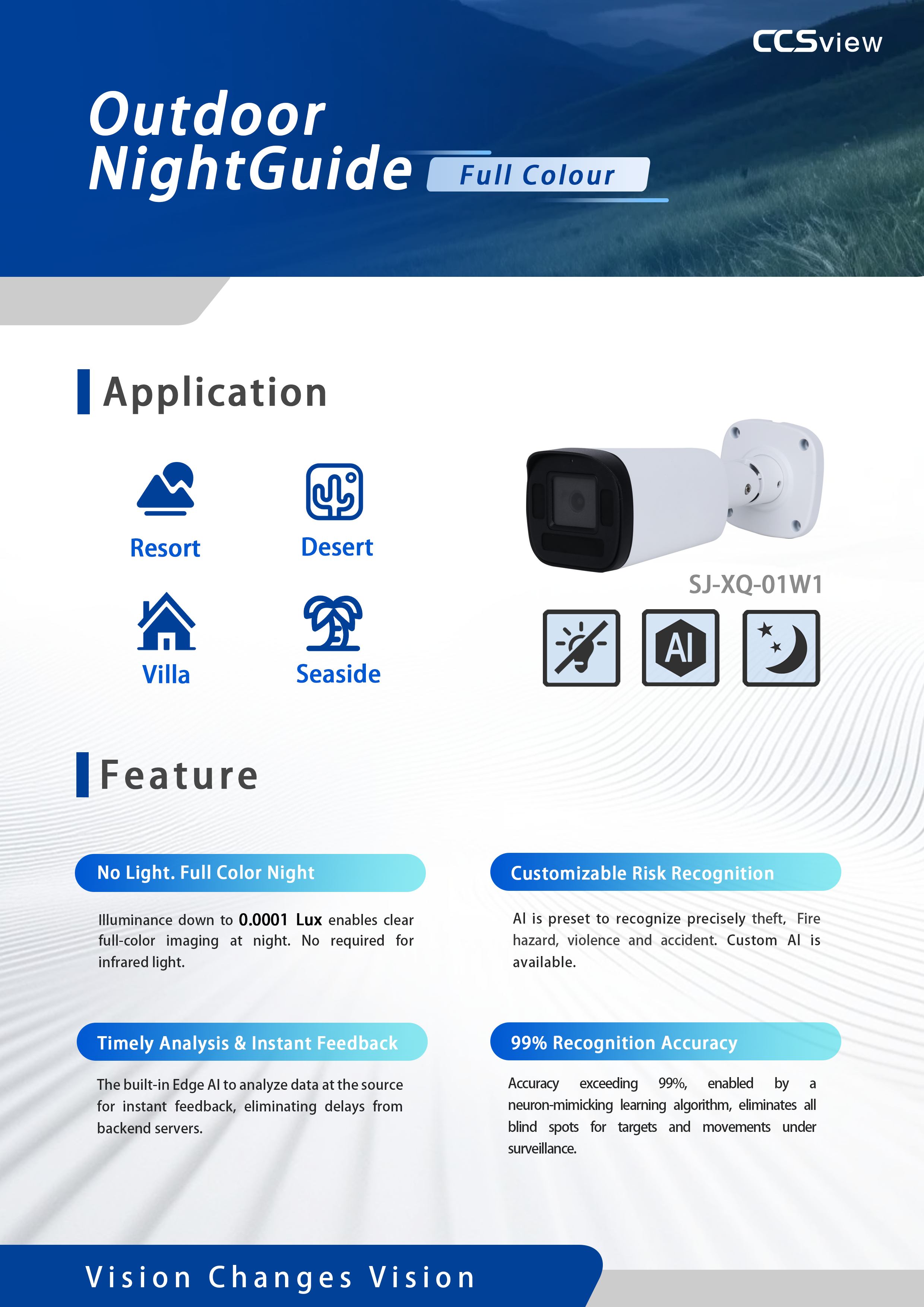

4-1

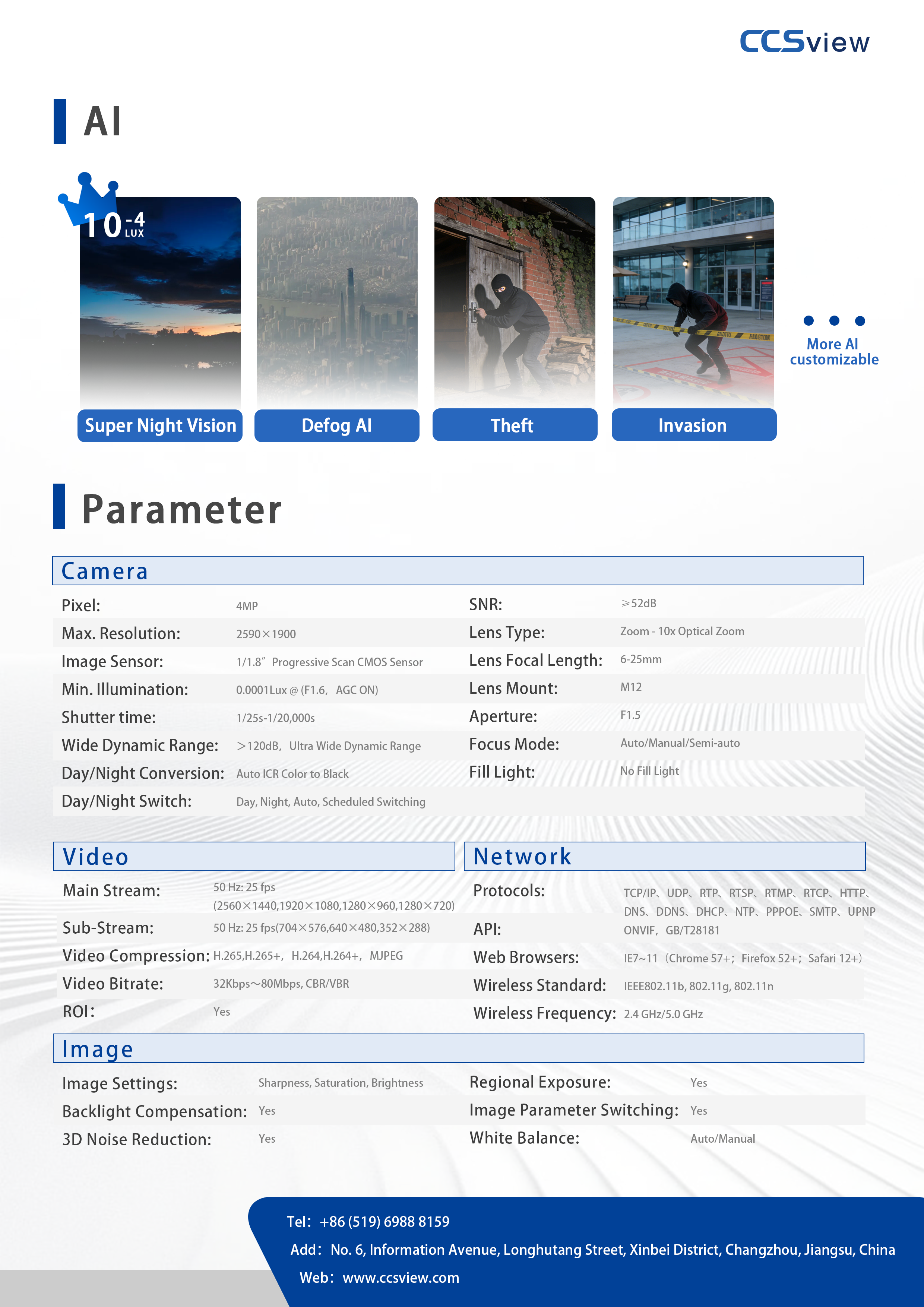

4-2

Camera

Pixel	4MP
Max. Resolution	2680×1520
Image Sensor	1/1.8" Progressive Scan CMOS Sensor
Min. Illumination	0.001Lux @ F1.6, AGC ON
Shutter time	1/25~1/20,000s
Wide Dynamic Range	>120dB, Ultra Wide Dynamic Range
Day/Night Conversion	Auto ICR Color to Black
Day/Night Switch	Day, Night, Auto, Scheduled Switching
SNR	≥52dB
Lens Type	Zoom-10×Optical Zoom
Lens Focal Length	6-25mm
Lens Mount	M12
Aperture	F1.5
Focus Mode	Auto/Manual/Semi-auto
Fill Light	No Fill Light

Video

Network

Protocols	TCP/IP, UDP, RTP, RTSP, HTTP, RTCP, HTTPS, DNS, DDNS, DHCP, NTP, PPPOE, SMTP, UPNP
API	ONVIF, GB/T28181
Web Browsers	IE7~11, Chrome 57+, Firefox 52+, Safari 12+
Wireless Standard	IEEE802.11b, 802.11g, 802.11n
Wireless Frequency	2.4GHz/5.0GHz


Image Settings	Sharpness, Saturation, Brightness
Backlight Compensation	Yes
3D Noise Reduction	Yes
Regional Exposure	Yes
Image Parameter Switching	Yes
White Balance	Auto/Manual
