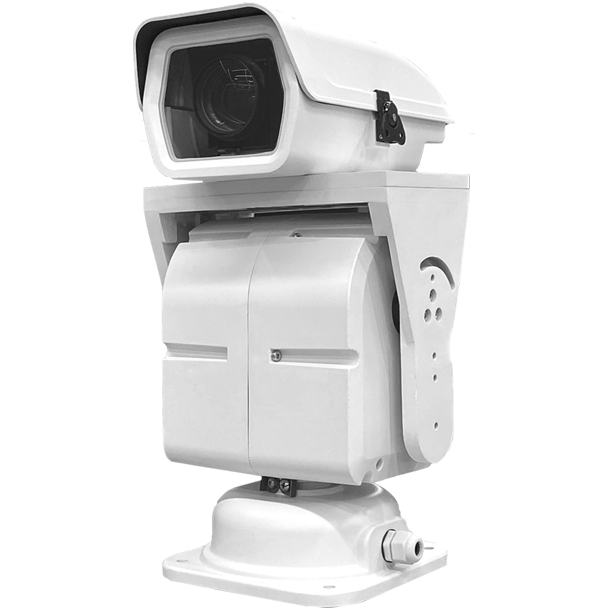

Outdoor NightGuide Pro

This system consists of monitoring equipment, communication module and power module which can be used in any field like national border, public place and important industries that requires clear, long-range and accurate vision in very darkness to ensure the security.


Availability:

Model:
SJ-JY-01G1

No Needed for Lighting

AI Customizable

99% AI Recogization Accuracy

Instant Data Analysis and Feedback

Product Description

Technical Parameters

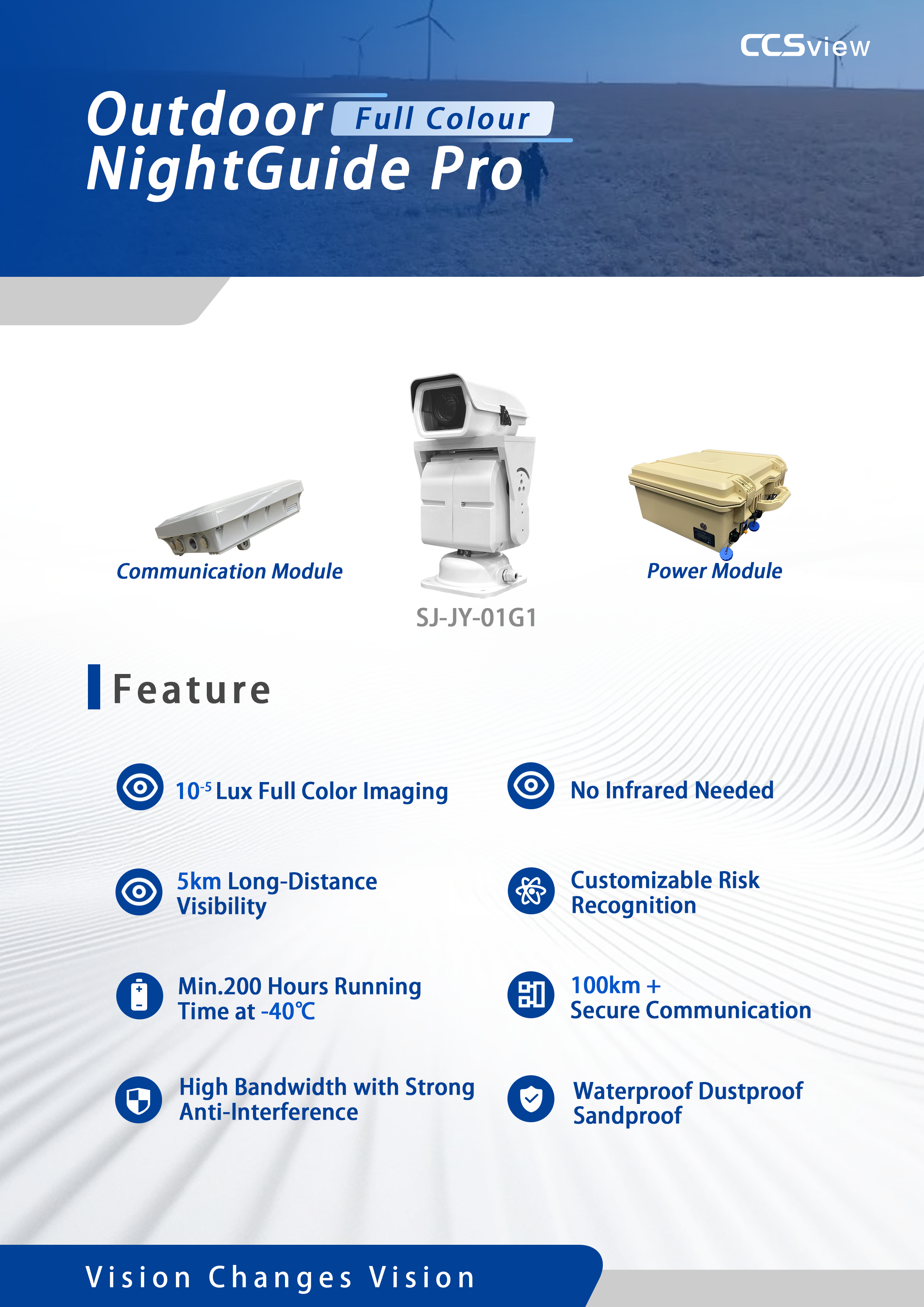

5-1

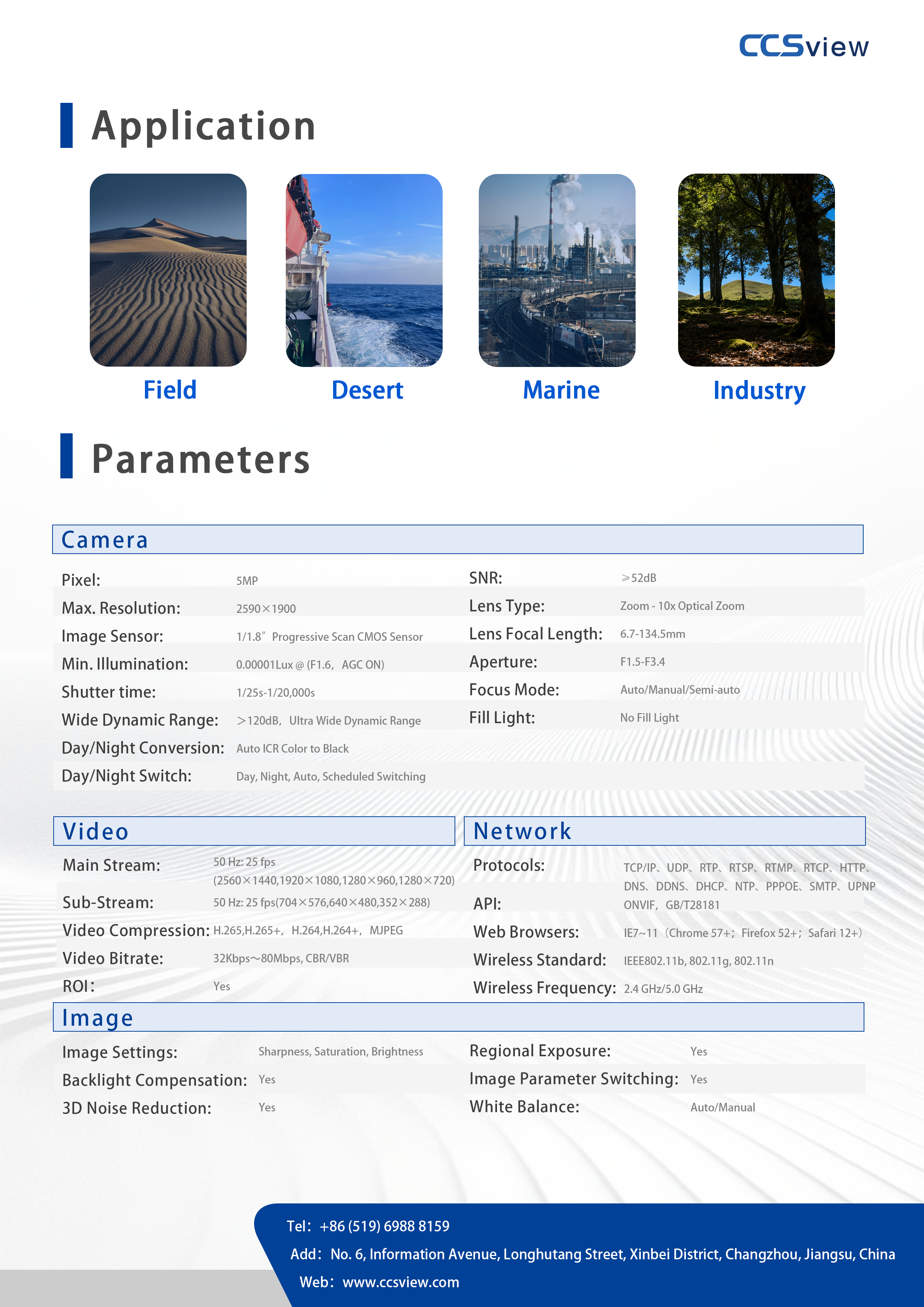

5-2

Camera

Pixel	5MP
Max. Resolution	2590×1900
Image Sensor	1/1.8" Progressive Scan CMOS Sensor
Min. Illumination	0.001Lux @ F1.6, AGC ON
Shutter time	1/25~1/20,000s
Wide Dynamic Range	>120dB, Ultra Wide Dynamic Range
Day/Night Conversion	Auto ICR Color to Black
Day/Night Switch	Day, Night, Auto, Scheduled Switching
SNR	≥52dB
Lens Type	Zoom-10×Optical Zoom
Lens Focal Length	6.7~134.5mm
Aperture	F1.5-F3.4
Focus Mode	Auto/Manual/Semi-auto
Fill Light	No Fill Light

Video

Main Stream	50Hz:25fps (2560×1440/1920×1080/1280×960/1280×720)
Sub-Stream	50Hz:25fps (704 × 576,640 ×480,352 × 288)
Video Compression	H.265/H.265+, H.264/H.264+, MJPEG
Video Bitrate	320Kbps~80Mbps, CBR/VBR
ROI	Yes

Network

Protocols	TCP/IP, UDP, RTP, RTSP, HTTP, RTCP, HTTPS, DNS, DDNS, DHCP, NTP, PPPOE, SMTP, UPNP
API	ONVIF, GB/T28181
Web Browsers	IE7~11, Chrome 57+, Firefox 52+, Safari 12+
Wireless Standard	IEEE802.11b, 802.11g, 802.11n
Wireless Frequency	2.4GHz/5.0GHz


Image Settings	Sharpness, Saturation, Brightness
Backlight Compensation	Yes
3D Noise Reduction	Yes
Regional Exposure	Yes
Image Parameter Switching	Yes
White Balance	Auto/Manual
